Special Link for the M8 thread,

• The thread type for the DRS model can be a bit tricky, as it starts with M8 and then switches to 1/8 BSPP.. To ensure you get the correct one, please follow these steps:

  1. Measure the thread on your current factory gauge using a caliper to determine the thread diameter and length.
•
  2. Compare the photo of both M8 and 1/8 BSPP threads to identify the correct one.

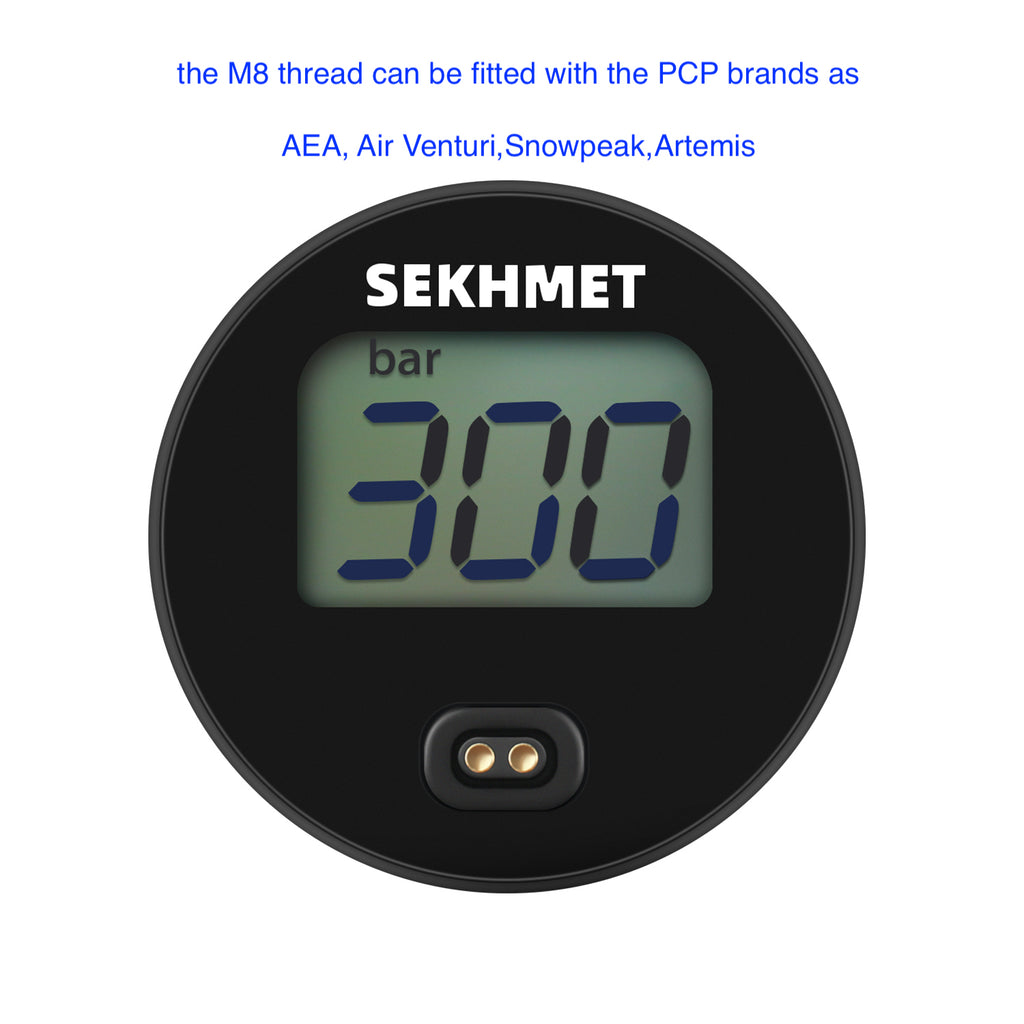

• The M8 thread: specifically designed for Bintac Mcar, Air Venturi Avenger, AEA, early versions of FX DRS, and Western Airgun Sidewinder.

Product Overview:

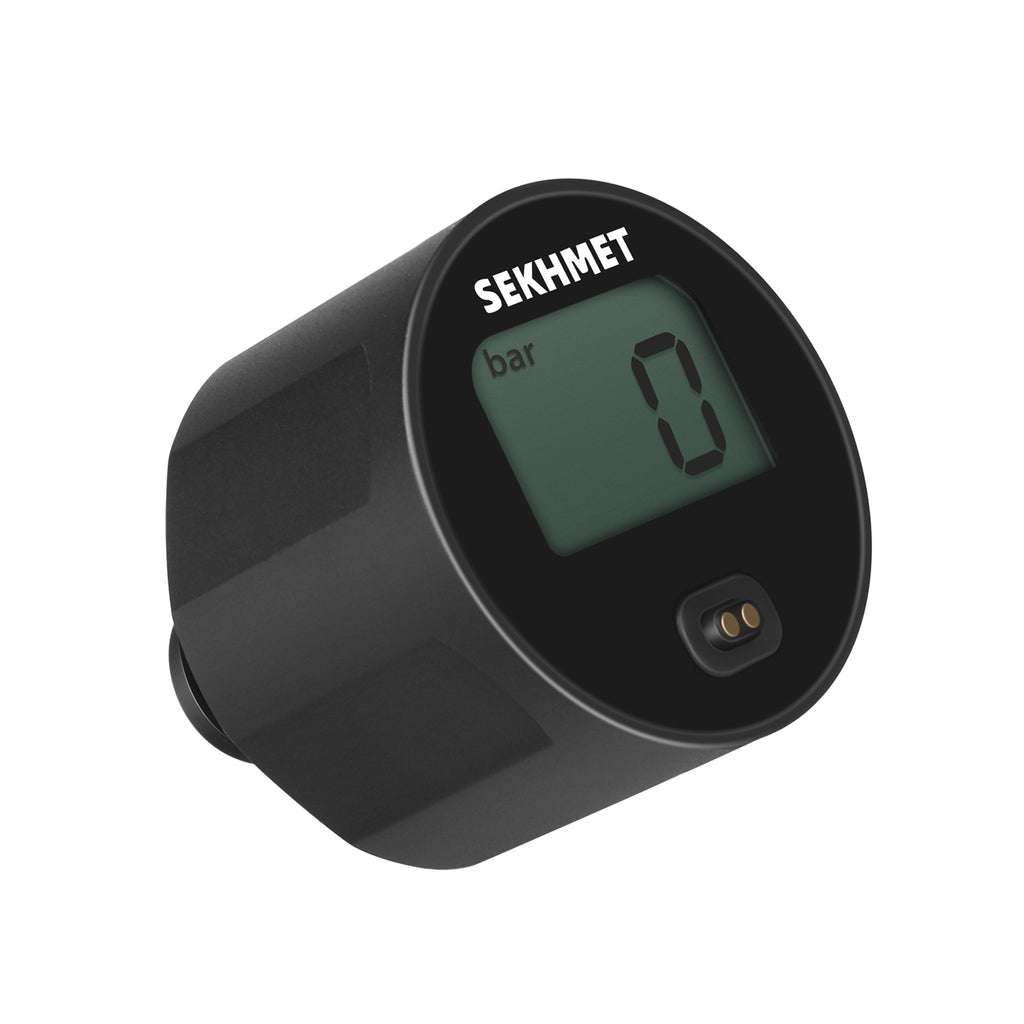

The 25 Std Sekhmet digital pressure gauge is the smallest, largest-screen, highest-accuracy, fastest-reading, and most user-friendly high-pressure gauge in the world.

It features a large visible range, seamless one-piece design, elegant touch button operation, and a super large rechargeable battery that can last up to 3 months on a single charge. Easily mounted on air rifles, it allows magnetic charging without needing to release pressure for battery replacement.

Key Features:

• The 25 STD model: Exclusively displays the current pressure without any calculation functions, making it highly recommended for use with regulators. It allows you to observe the minute changes in the pressure chamber after each shot, ensuring that the pressure returns precisely to the set value. This helps maintain consistent air usage for each shot, significantly improving shooting accuracy.

• 5-level battery indicator, low battery flashing, and charging reminder.

Specifications:

• Pressure Range:15 to 300 bar (217 to 4351 psi)
• Accuracy Class: 0.25, with a maximum full-scale error of ±0.75 bar at 300 bar
• Display: 6.3‘inch large non-illuminated LCD screen
• Diameter: 25mm;  Height 18.5mm(thread exclusive); Weight: 25g

• Pressure Units:** bar only (no psi switch)

Package Includes:

• Gen-2 25std Gauge with M8 thread
• User manual
• Magnetic USB charging cable
• Sealing kit (includes O-ring, X-ring, PTFE gasket)
• DO NOT USE THE DOWTY SEAL



Shipping Policy:

• Worldwide shipping available.
• USA: $10, 3-7 business days
• Other major countries: $15, 5-10 business days  (includes taxes for most EU countries)
• Other countries: $28, 5-10 business days by DHL or FedEx. Additional charges may apply for remote areas ($38). If you're not sure, pls Email us first.
• Order will be shipped within 48 hours on business days

Customer Reviews:

User Photo Gallery:

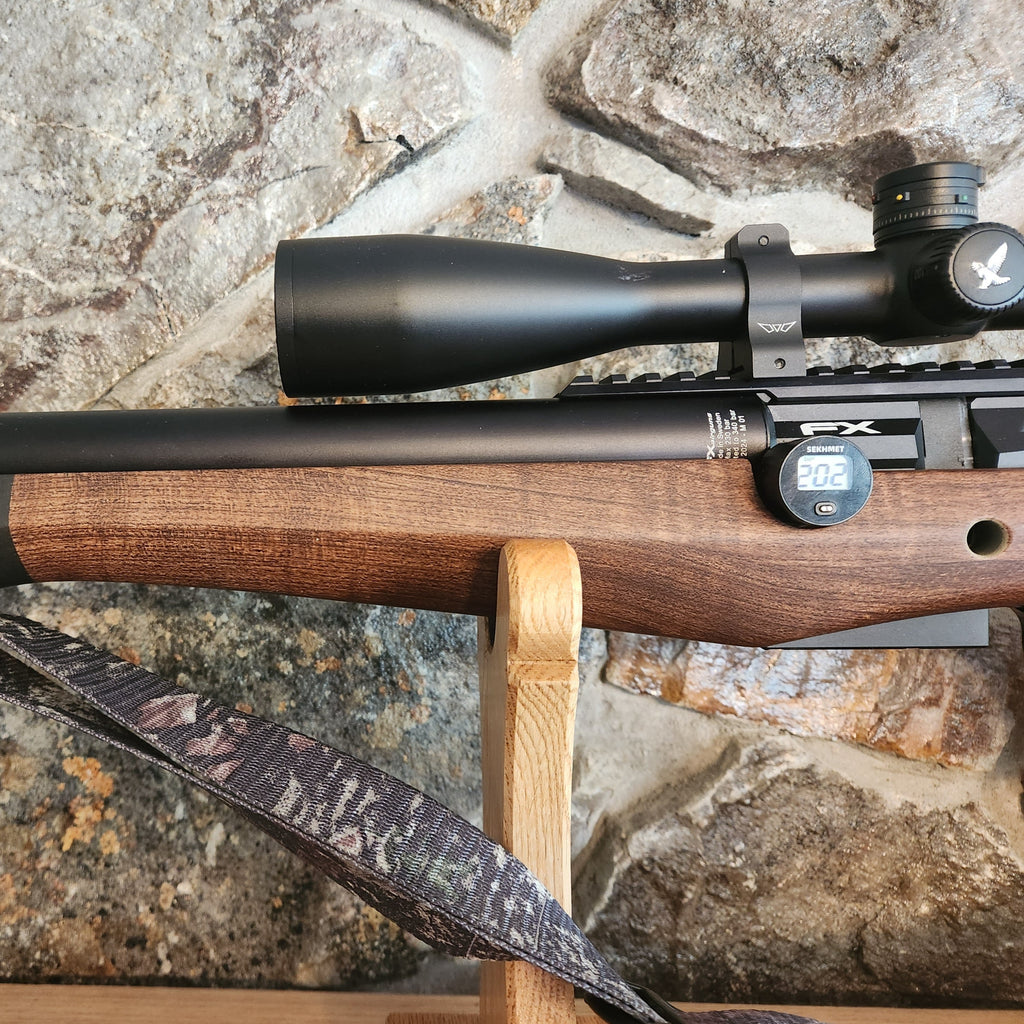

FX DRS early edition Walnut stock

 (Latest one use 1/8 bspp thread, if you're not sure, pls contact us by email )

FX DRS early edition Synth stock

AEA Challenger Pro

Air Venturi Avenger

User Manual Download:

For detailed instructions and Q&A, download the user manual:

• ⏬  DOWNLOAD USER MANUAL  ⏬

Q. 25std Battery Icon Misunderstanding:

A: Some users mistake the battery icon for a charging progress bar.

The icon is merely an indicator to differentiate it from the pressure bar display page. The actual battery level is shown as numbers next to the battery icon, displayed in five levels: Lo / 5 / 20 / 60 / 100.
